| 額定載荷 | t | 0.06,0.13,0.28,0.25,0.5,1,2,3.5,5,10,13,28,60 | ||||
| 精度 | C2 | C3 | C4 | C5 | ||
| 認證 | OIML R60 C3 | OIML R60 C4 | OIML R60 C5 | |||
| 最大檢定分度值 | nmax | 2000 | 3000 | 4000 | 5000 | |
| 最小檢定分度值 | Vmin | Emax/5000 | Emax/10000 | Emax/14000 | Emax/16000 | |
| 綜合誤差 | (%FS) | ≤± 0.0300 | ≤± 0.0230 | ≤± 0.0173 | ≤± 0.0140 | |
| 蠕變 | (%FS/30min) | ≤± 0.0245 | ≤± 0.0245 | ≤± 0.0184 | ≤± 0.0147 | |
| 溫度對輸出靈敏度影響 | (%FS/10℃) | ≤± 0.0175 | ≤± 0.0117 | ≤± 0.0088 | ≤± 0.0070 | |
| 溫度對零點輸出影響 | (%FS/10℃) | ≤± 0.0280 | ≤± 0.0140 | ≤± 0.0100 | ≤± 0.0088 | |
| 輸出靈敏度 | (mv/v) | 60kg/130kg/280kg | 250kg | 500kg-60t | ||
| 1.0±0.1 | 1.75±0.1 | 2.0±0.1 | ||||
| 輸入阻抗 | ( Ω ) | 60kg/130kg/280kg | 250kg/500kg-10t | 13t | 28t | 60t |
| 1260±100 | 1100±100 | 1200±100 | 1075±100 | 1350±200 | ||
| 輸出阻抗 | ( Ω ) | 60kg/130kg/280kg | 250kg/500kg-10t | 13t | 28t | 60t |
| 1020±0.5 | 1025±25 | 1000±0.5 | 930±0.5 | 1175±0.5 | ||
| 絕緣阻抗 | (M Ω ) | ≥ 5000(50VDC) | ||||
| 零點輸出 | (%FS) | 1.0 | ||||
| 溫度補償范圍 | ( ℃ ) | -10～+40 | ||||
| 允許使用溫度范圍 | ( ℃ ) | -30～+70 | ||||
| 推薦激勵電壓 | (V) | 5～12(DC) | ||||
| 最大激勵電壓 | (V) | 18(DC) | ||||
| 安全過載范圍 | (%FS) | 150 | ||||
| 極限過載范圍 | (%FS) | 300 | ||||
| 推薦安裝扭矩 | Nm | 60kg/130kg/280kg | 250kg/500kg-10t | 13t | 28t | 60t |
| 8 | 10 | -- | -- | -- | ||
| 防護等級 | IP68 | |||||

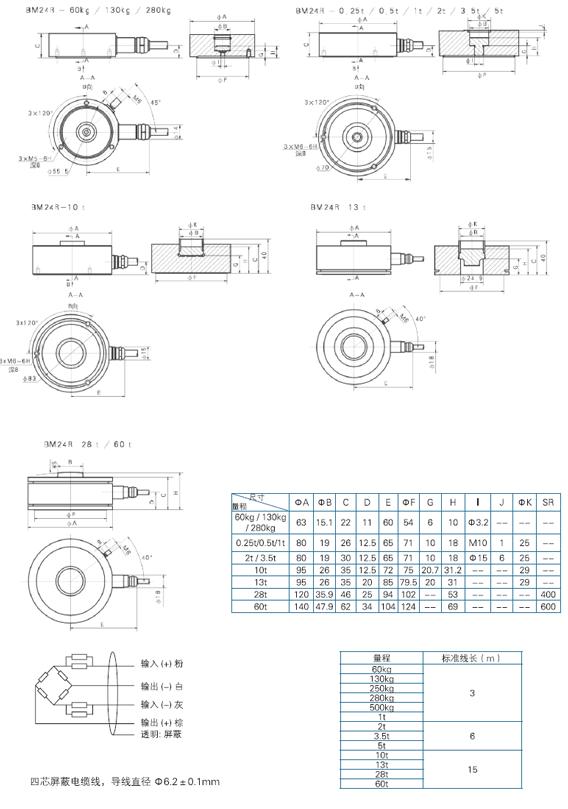

外形尺寸:mm
